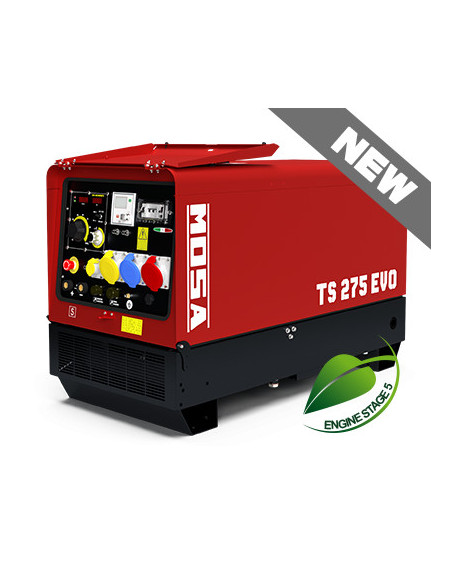

Agregat spawalniczy MOSA TS 275 EVO Instrument

Engine Driven Welder Diesel KOHLER KDW702 - Three-phase asynchronous Alternator -  Water cooling

• Welding current: 20A / 20.8V ÷ 270A / 21V (Stick)  |  20A / 10.8V ÷ 270A / 20.8V (Tig)
• Service: 200A / 28V @ 100%  -  230A / 29.2V @ 60% (Stick)  |  200A / 18V @ 100%  -  230A / 19.2V @ 60%  -  270A / 20.8V @ 35% (Tig)
• Open circuit voltage (no-load voltage): 66 Vcc (68 Vcc peak)

POWER RATINGS

• Three-phase power: 8 kVA (6.4kW) / 400 V / 14.4 A
• Single-phase power: 5 kVA/kW / 230 V / 21.7 A
• Single-phase power: 2.5 kVA/kW / 110 V / 22.7 A
• Single-phase power: 5 kVA/kW / 48 V / 104 A

GENERAL SPECIFICATION

• Tank capacity: 38 l
• Running time (welder 100%): 11 h
• Guaranteed acoustic power LwA (pressure LpA): 94 dB(A) (70 dB(A) @ 7 m)
• Measured acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m)
• Weight: 390 Kg
• Dimensions max. on base Lxlxh:  1433x710x931 mm
