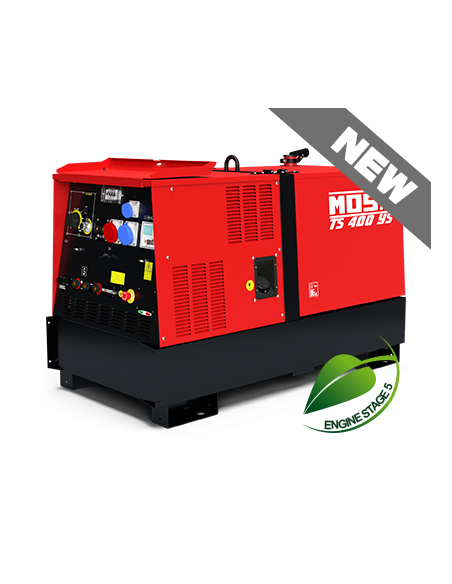

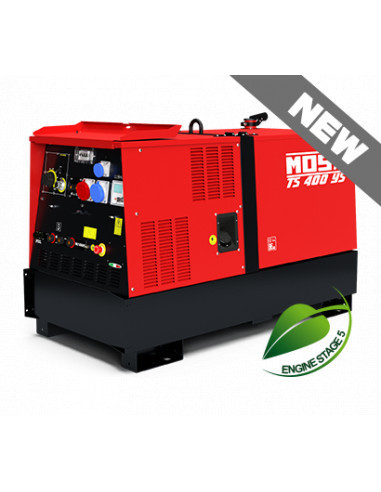

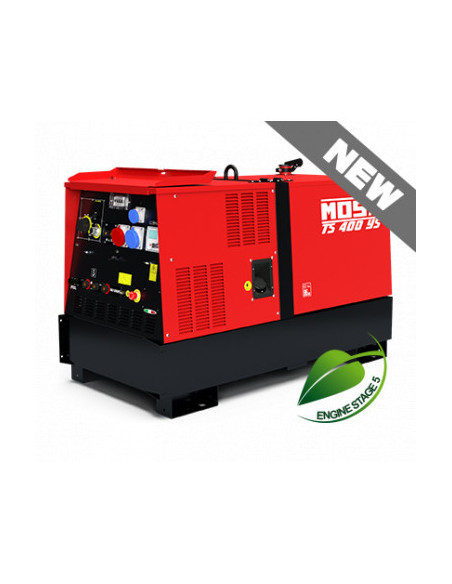

Agregat spawalniczy MOSA TS 400 YS

Engine Driven Welder Diesel YANMAR 4TNV88 - Three-phase asynchronous Alternator - Water cooling

WELDING

• Welding current: 20A ÷ 400A
• Welding current electronic regulation: continues on 2 scales: 20A ÷ 200A / 20A ÷ 400A
• Service: 400A - 60% / 350A - 100%
• Open circuit voltage (no-load voltage): 72 Vcc (77.5 Vcc di picco)

• Three-phase power: 16 kVA / 400 V / 23.1 A
• Single-phase power: 10 kVA / 230 V / 43.5 A

• Tank capacity: 60 l
• Running time (welder 60%): 19 h
• Measured acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7 m)
• Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m)
• Weight: 750 Kg
• Dimensions max. on base Lxlxh:  1720x850x1128 mm
