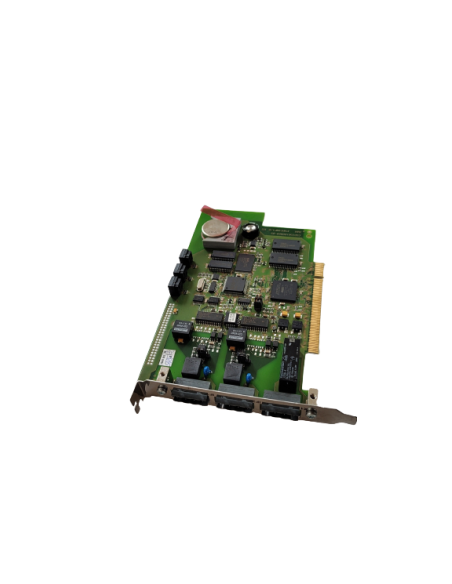

Logic scanner, PCI half-size module, 2 CAN bus interfaces, electrically isolated, max. 500 kbit/s, object buffer in transmit and receive direction, 256 kB SRAM (Automation Runtime)
Short description
| Communication module |
2x CAN bus |
General information
| Ready relay |
Normally open and normally closed contact, max. 30 VDC, max. 6 A |
| Status indicators |
- |
| Diagnostics |
|
| Data transfer |
Yes, using software |
| Power consumption |
2.4 W |
| Electrical isolation |
|
| IF1 - IF2 |
Yes |
| PC - IF1 |
Yes |
| PC - IF2 |
Yes |
| Certifications |
|
| CE |
Yes |
| UL |
cULus E115267
Industrial control equipment |
| EAC |
Product family certification |
Controller
| SRAM |
256 kB, battery-backed |
Interfaces
| Interface IF1 |
|
| Signal |
CAN bus |
| Variant |
4-pin male multipoint connector |
| Max. distance |
1000 m |
| Transfer rate |
Max. 500 kbit/s |
| Interface IF2 |
|
| Signal |
CAN bus |
| Variant |
4-pin male multipoint connector |
| Max. distance |
1000 m |
| Transfer rate |
Max. 500 kbit/s |
Operating conditions
| Degree of protection per EN 60529 |
IP20 when installed |
Ambient conditions
| Temperature |
|
| Operation |
0 to 55°C |
| Storage |
-25 to 70°C |
| Relative humidity |
|
| Operation |
0 to 95%, non-condensing |
Mechanical properties
| Note |
3x 0TB704.9 terminal blocks included in delivery
Lithium battery included in delivery |
| Slot |
Standard PCI half-size module, Plug & Play |
| Installation in |
|
| B&R Automation PC |
Yes |
| B&R Panel PC |
Yes |
| Desktop PC |
Yes |
