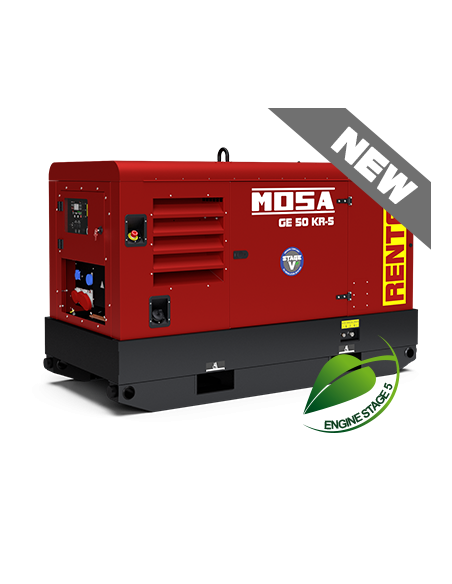

GE 50 KR-5
Diesel generating set KOHLER KDI 2504TCR - Three-phase synchronous alternator - Water Cooled
POWER RATINGS THREE-PHASE
- Stand-By three-phase power: 50 kVA (40 kW) / 400V / 72.2A
- PRP three-phase power: 45 kVA (36 kW) / 400V / 65A
- Frequency: 50 Hz
GENERAL SPECIFICATIONS
- Fuel tank capacity: 245 lt.
- Running time (75% to PRP): 29 h
- Measured acoustic power LwA (pressure LpA): 90.7 dB(A) (65.7 dB(A) @ 7m)
- Guaranteed acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @ 7m)
- Dry Weight: 1270 Kg
- Dimensions (LxWxH): 2401x1100x1575 mm
IntelliLite9 is one of the most complete versions of controllers for generating sets.
The possibility of expanding the number of digital inputs and outputs is very flexible, suitable for generators with high number of connected elements.
The expansion module allows the user to add internet, SMS and MODBUS connectivity to the generating set allowing remote control of the machine.
The user-friendly backlit display allows the user to view every parameter of the generating set.
